Blueprints
|
||||

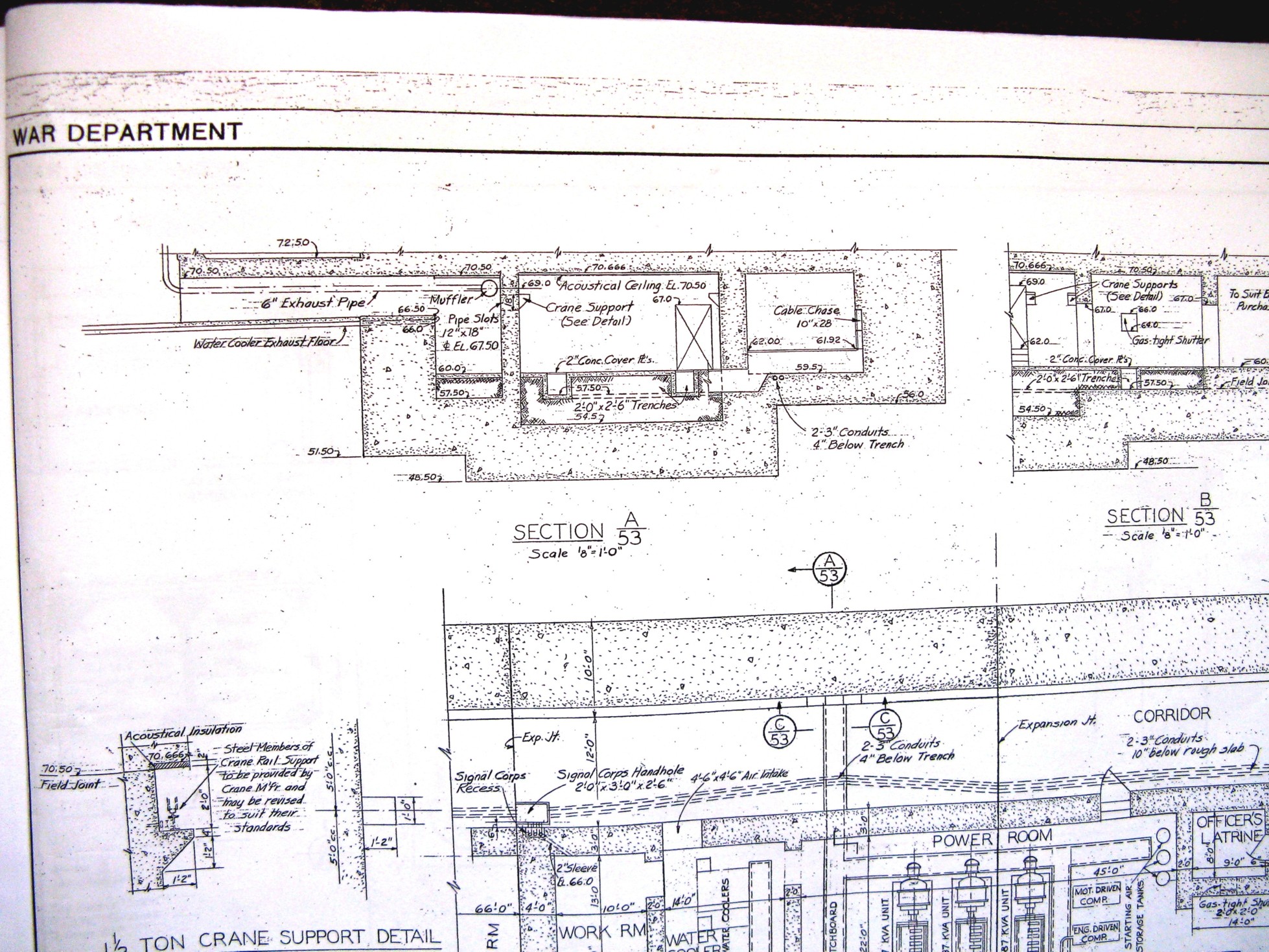

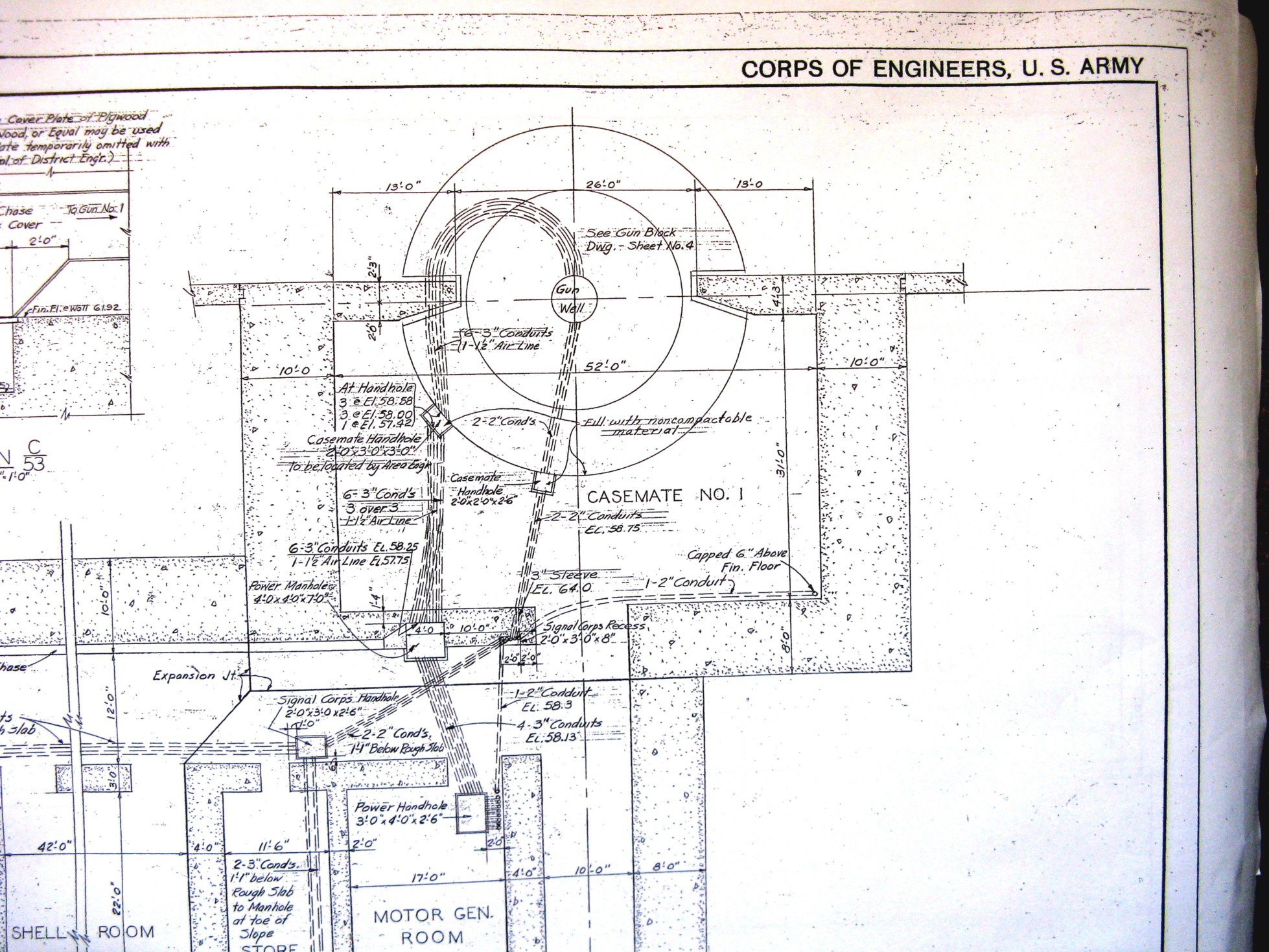

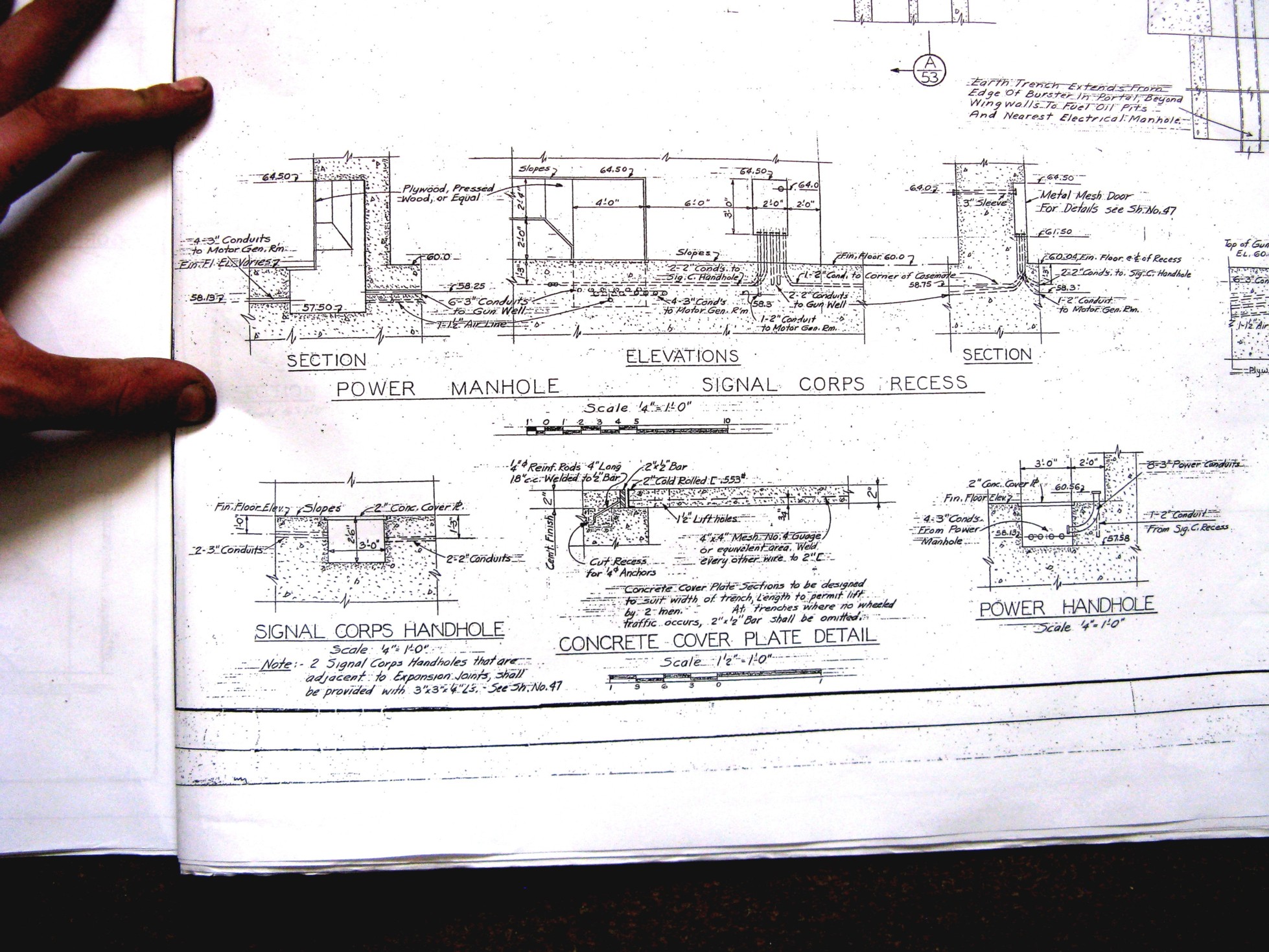

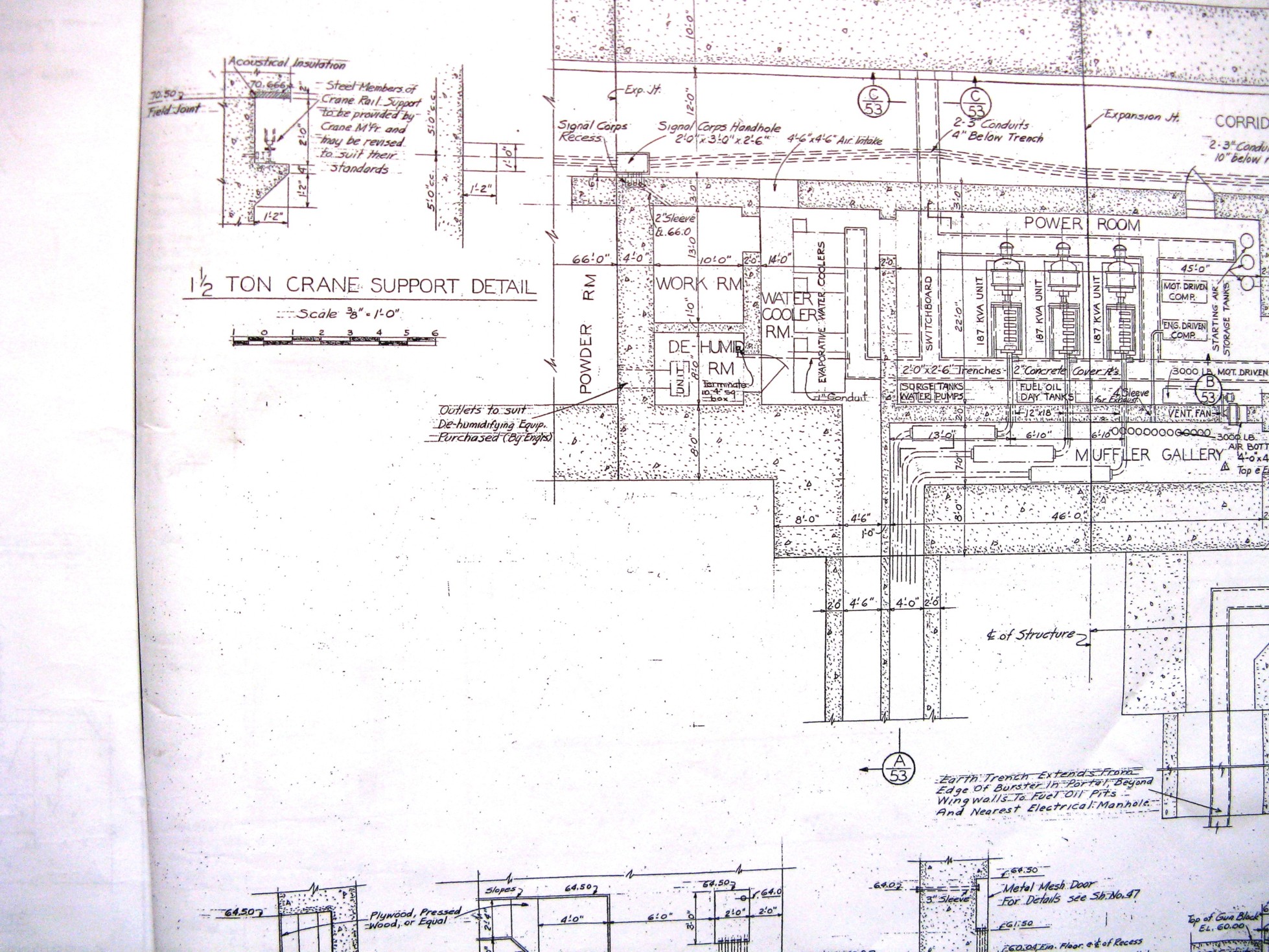

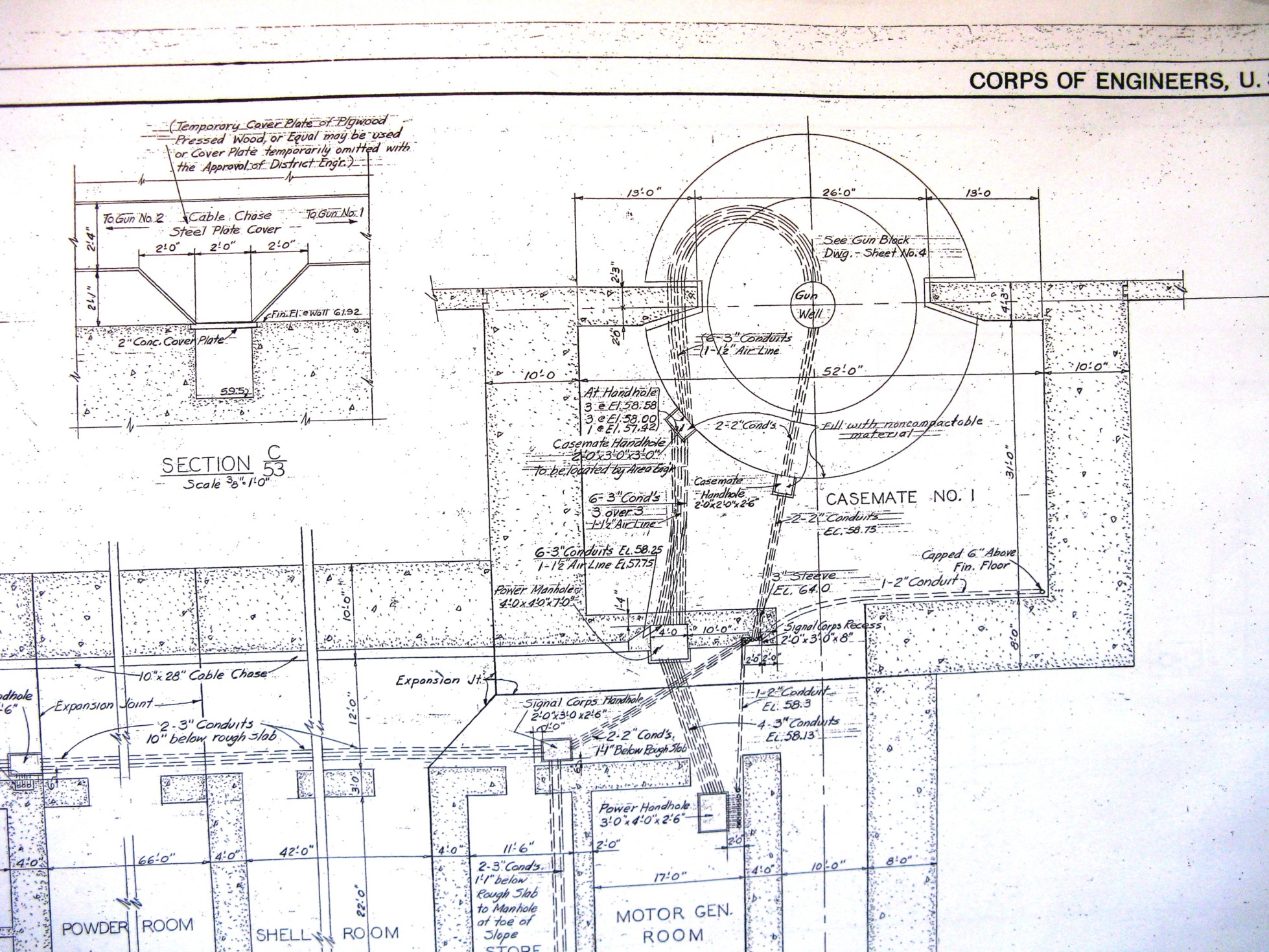

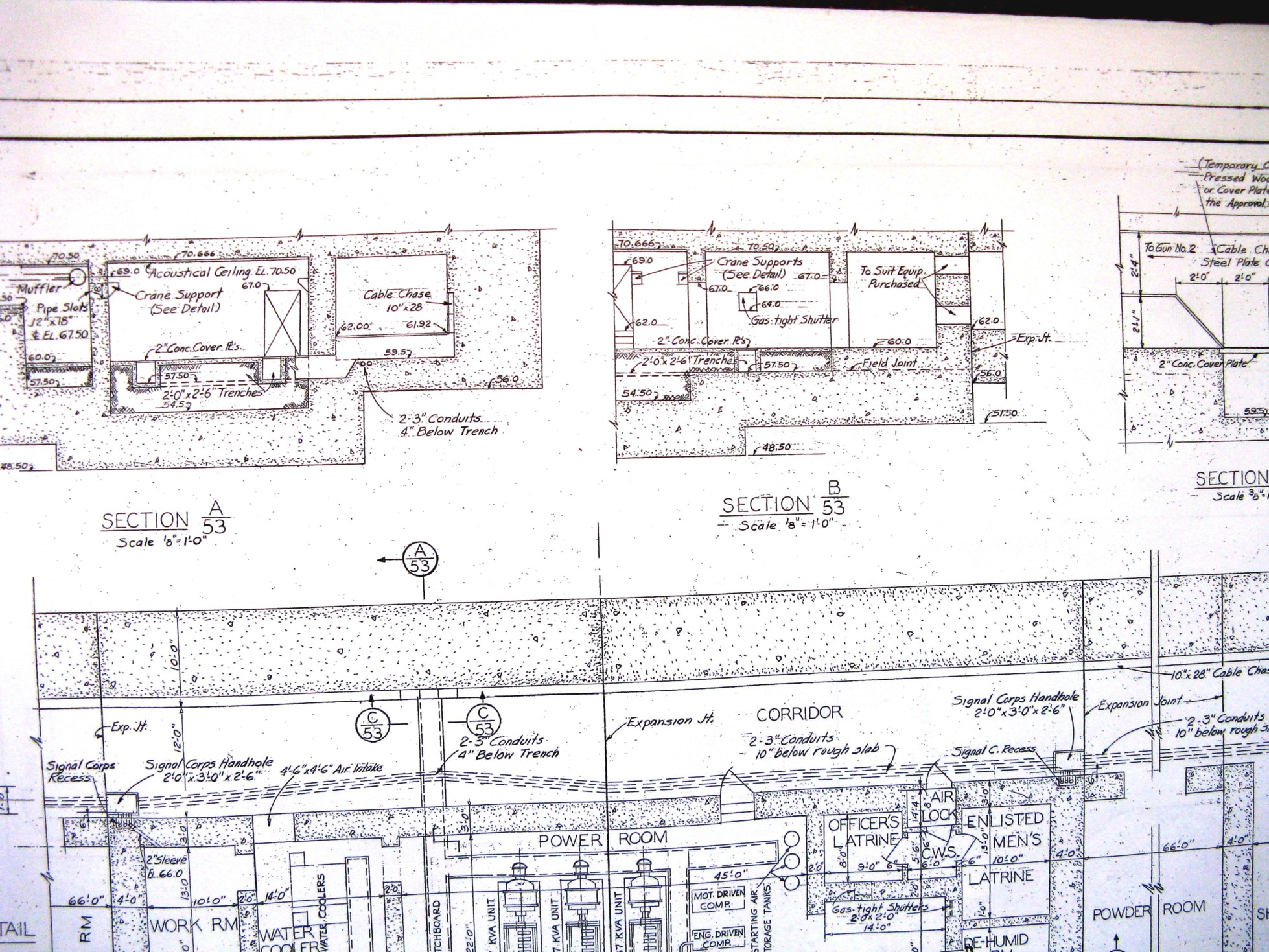

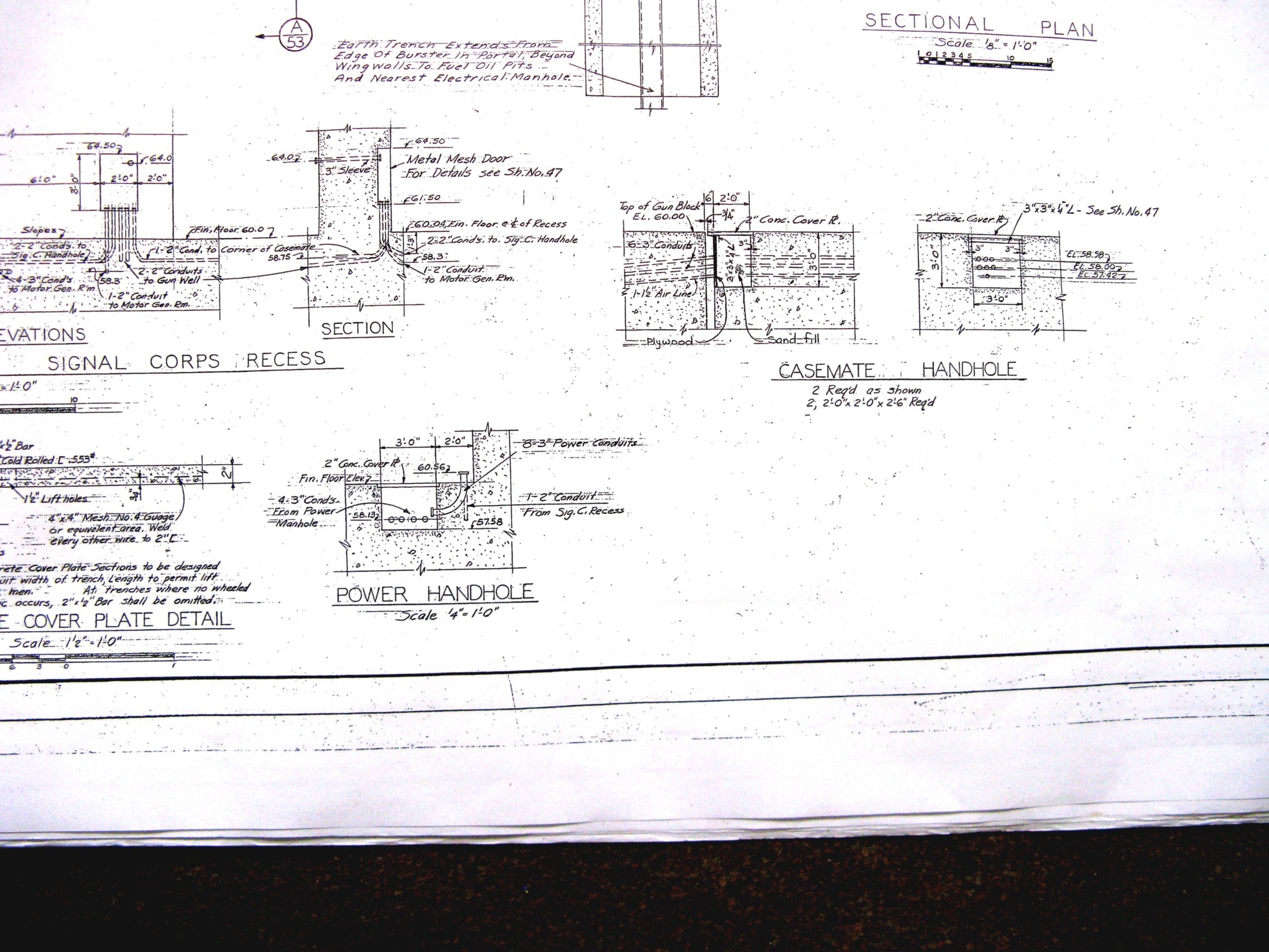

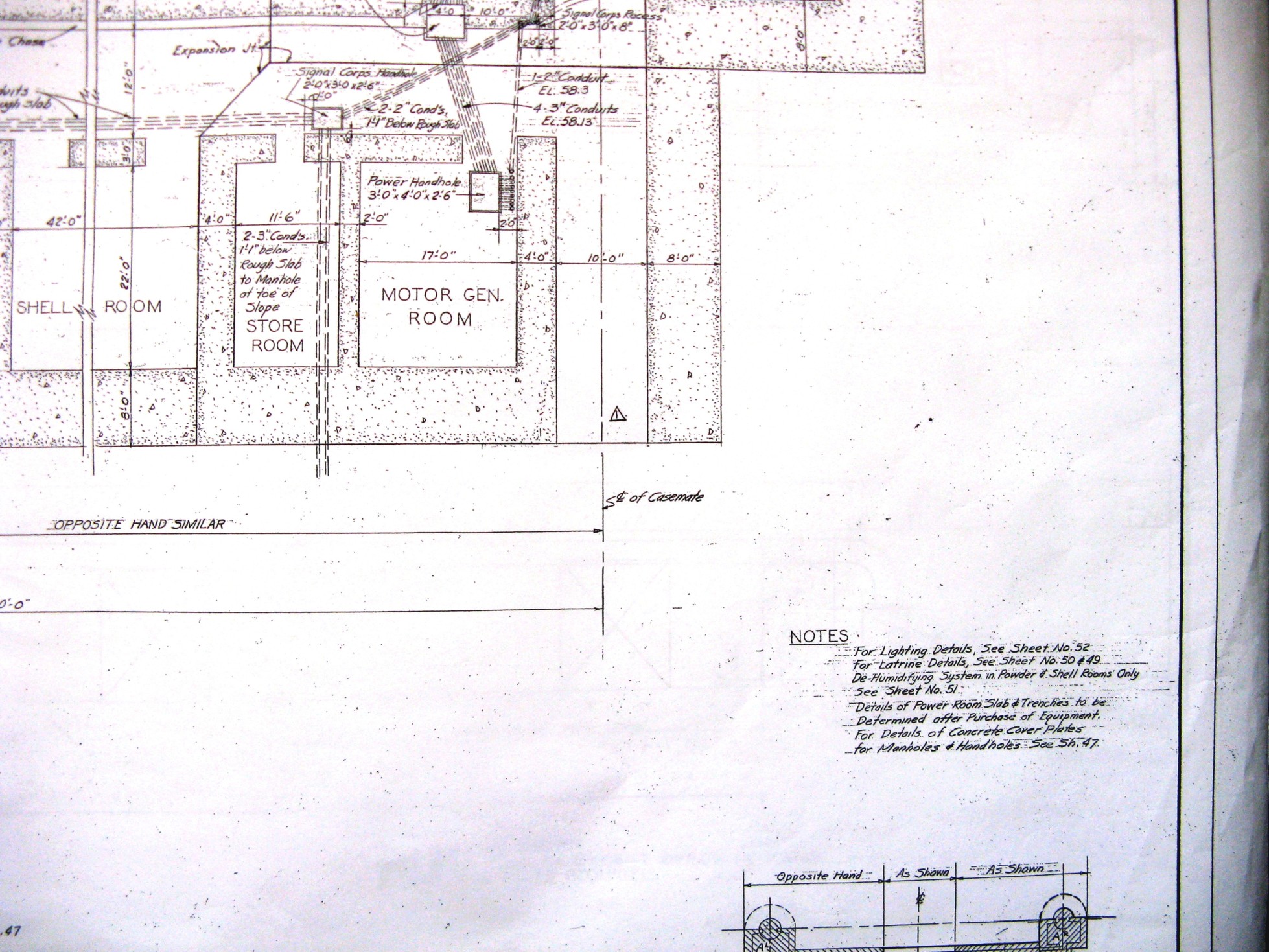

Conduit |
||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
 |
 |
|

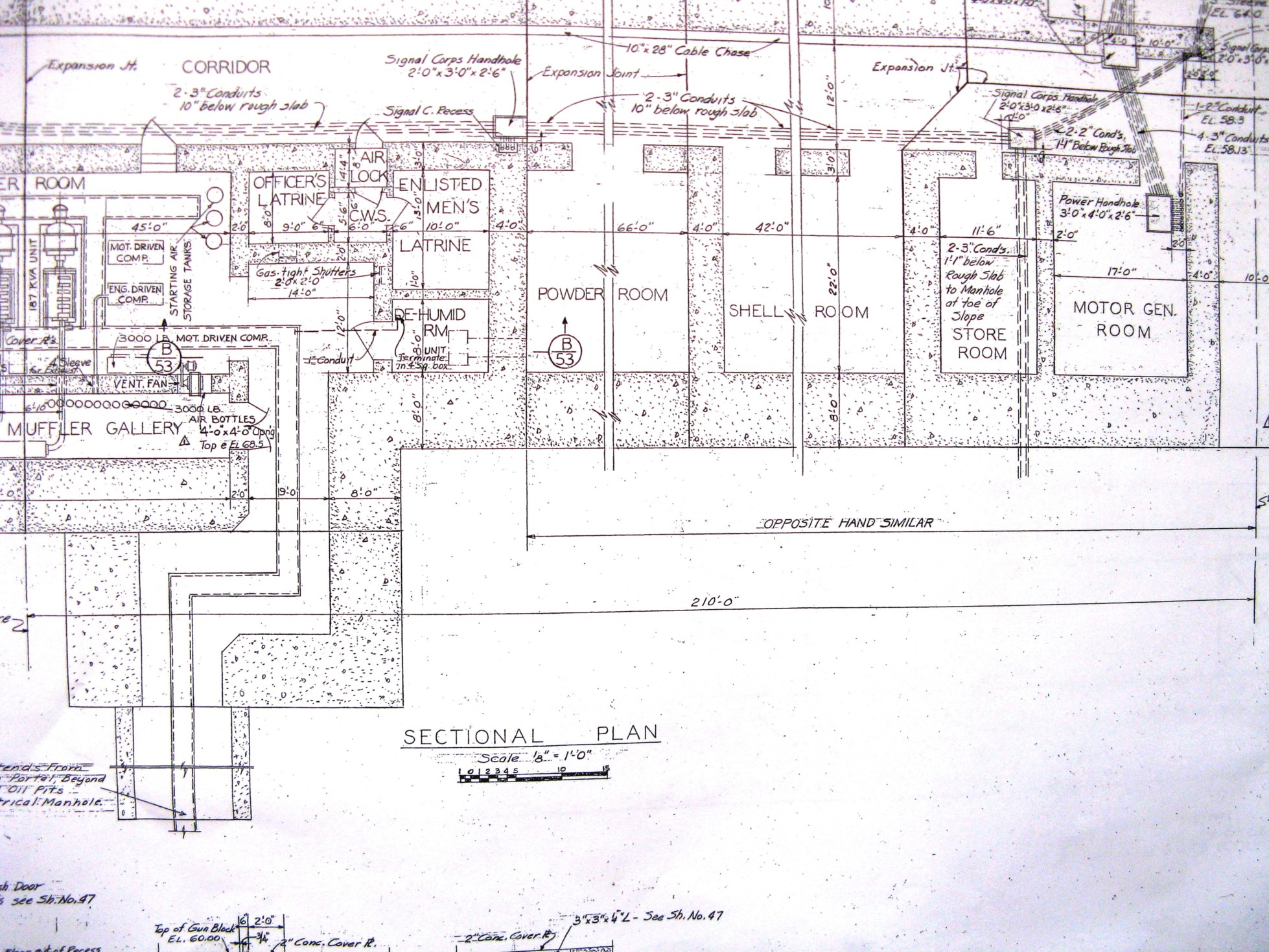

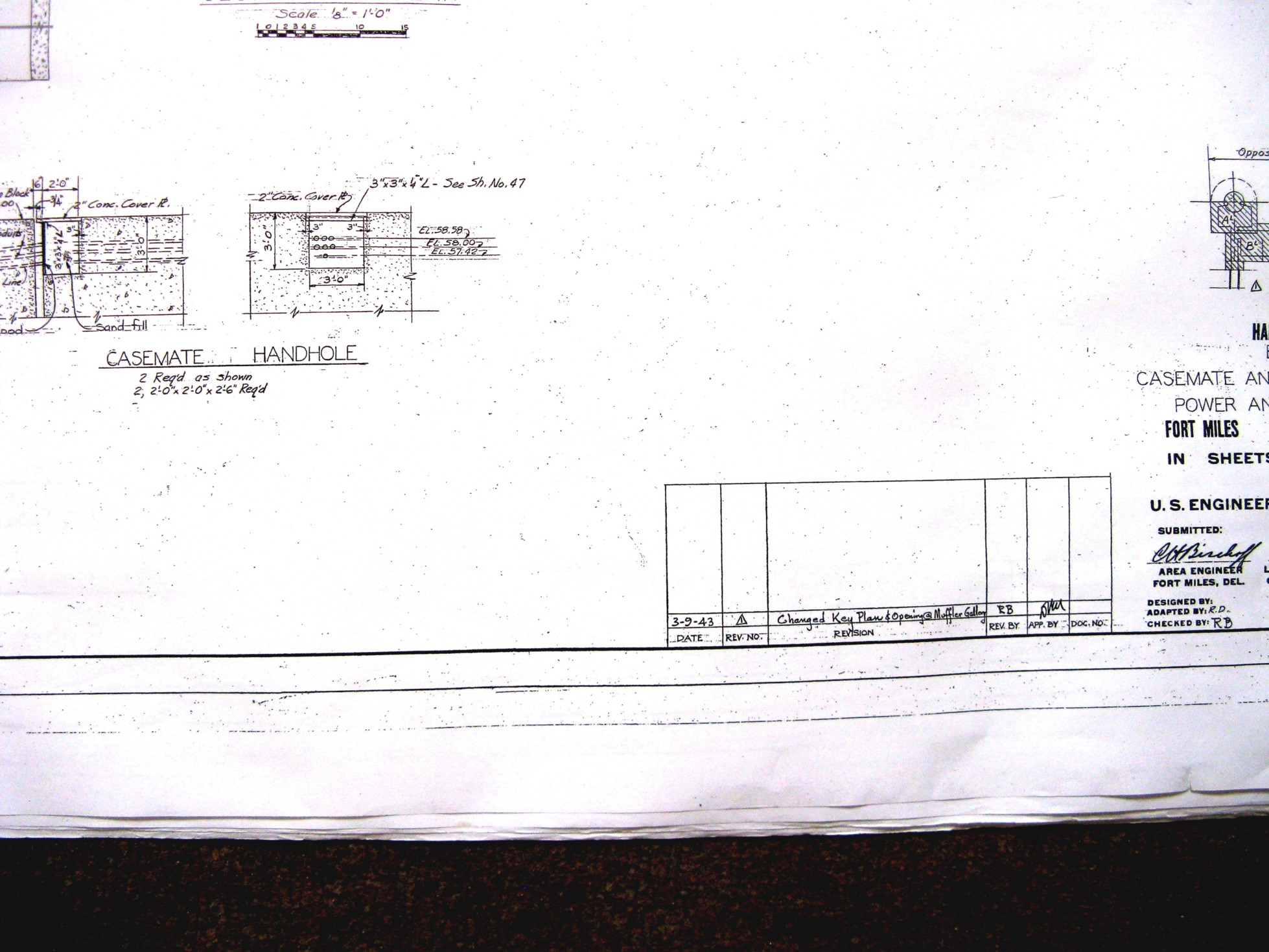

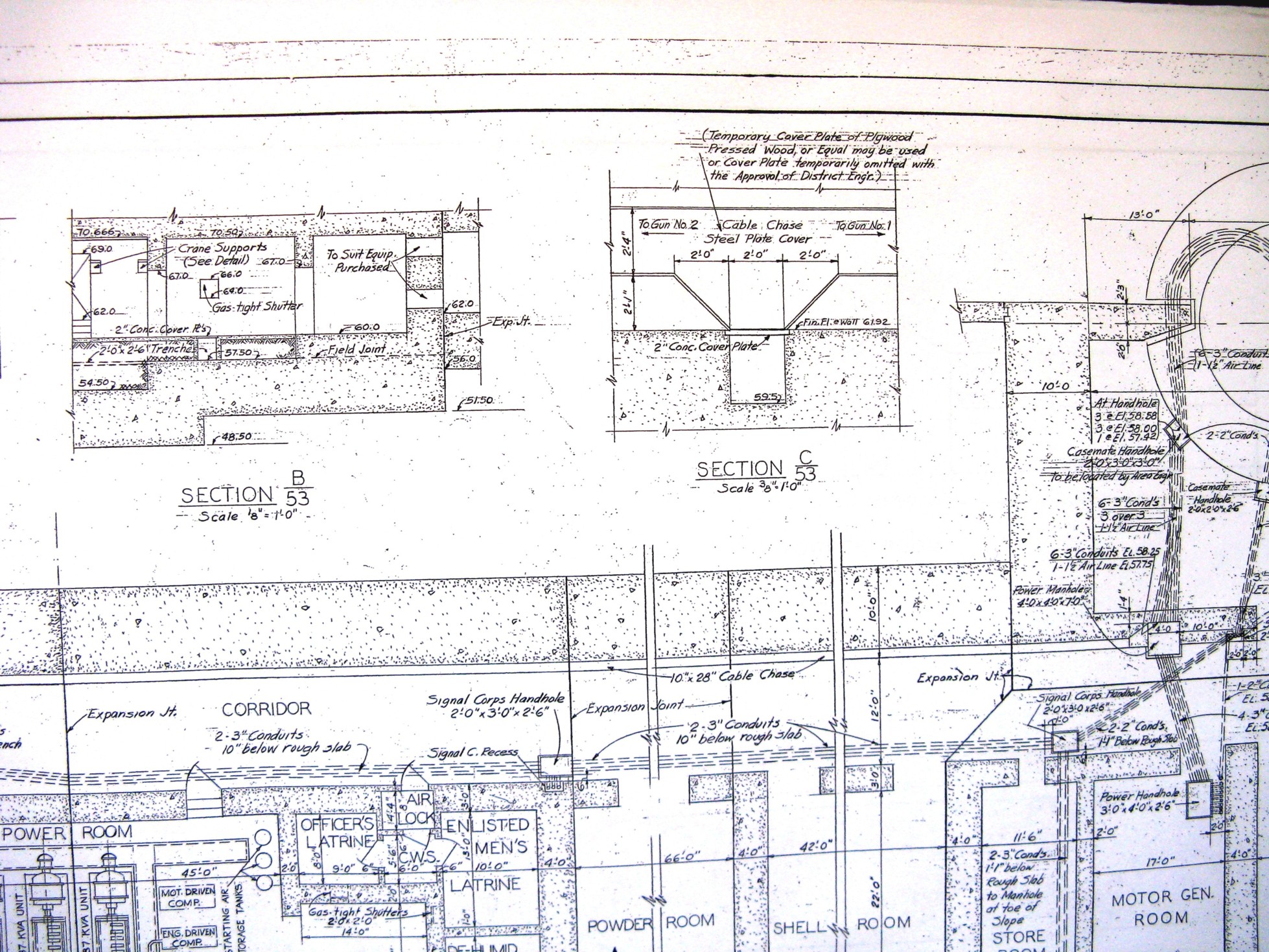

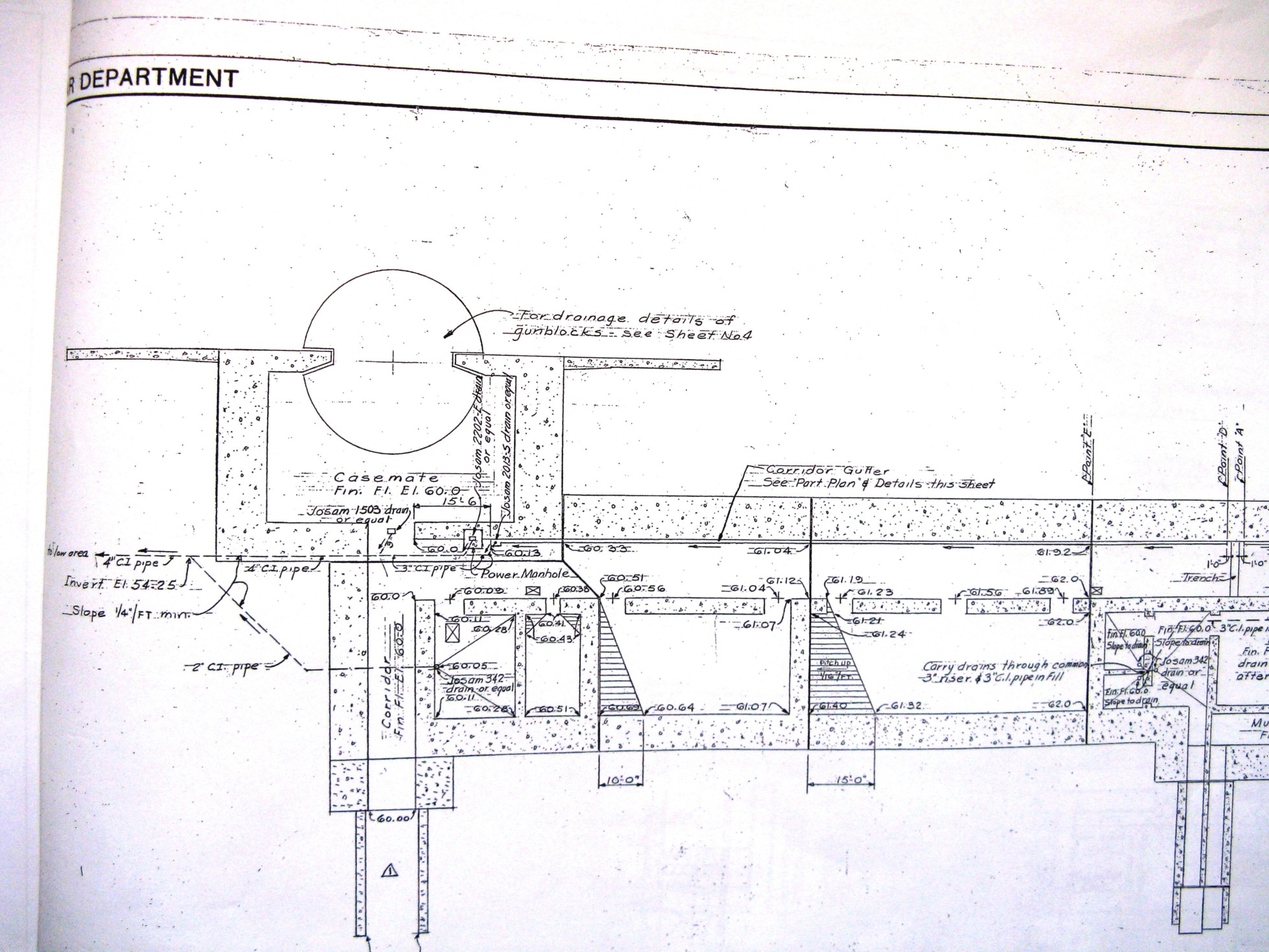

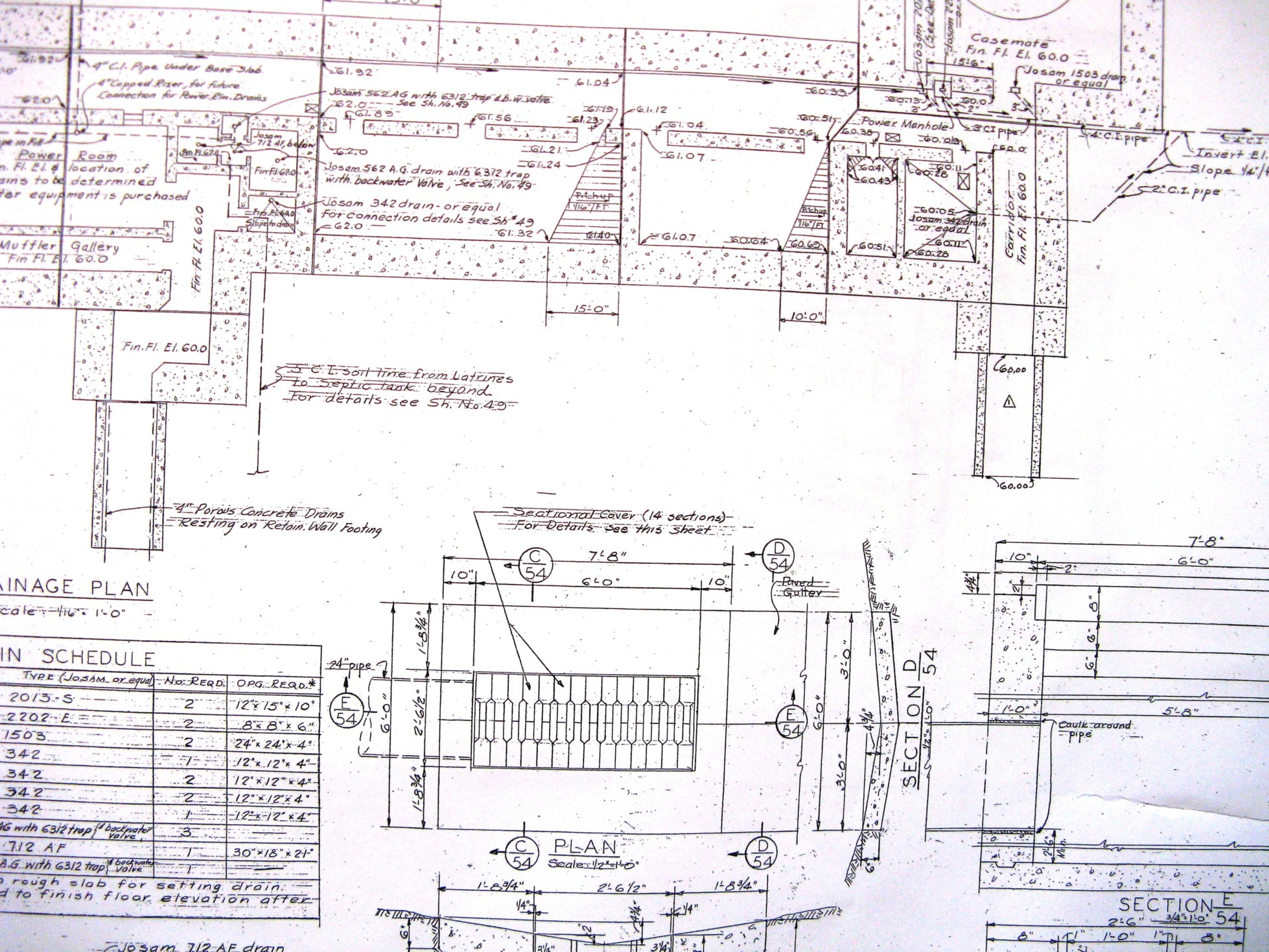

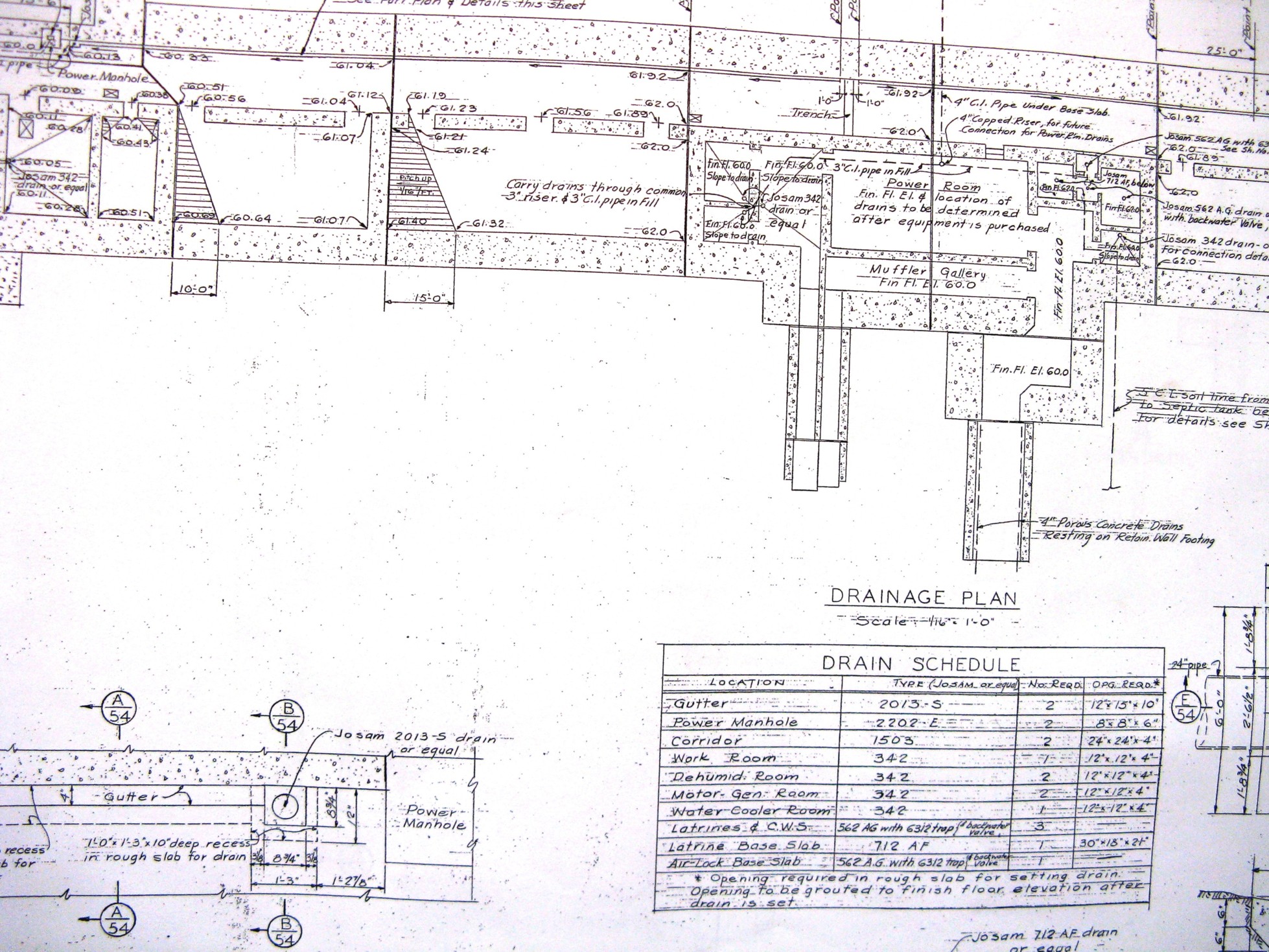

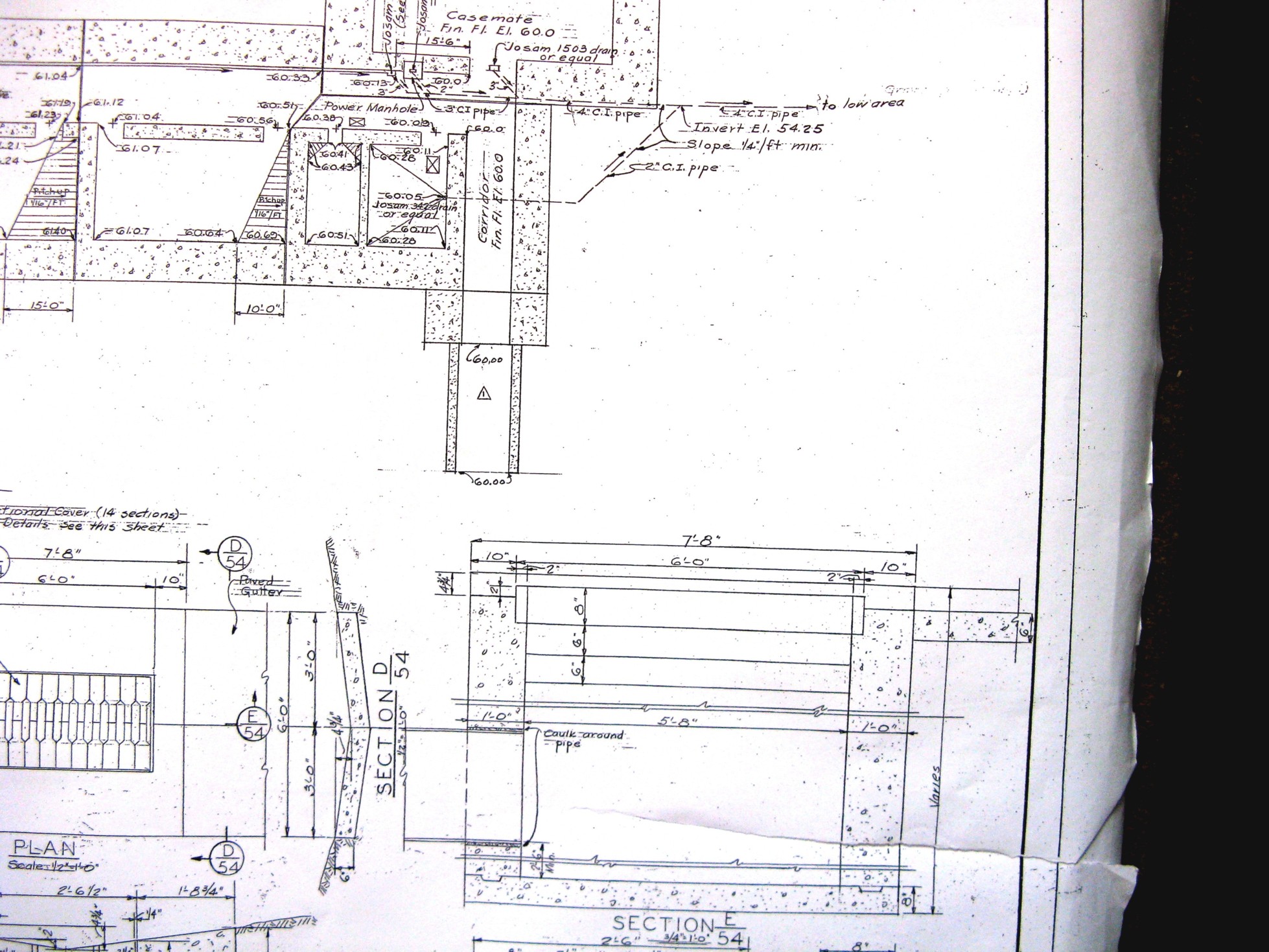

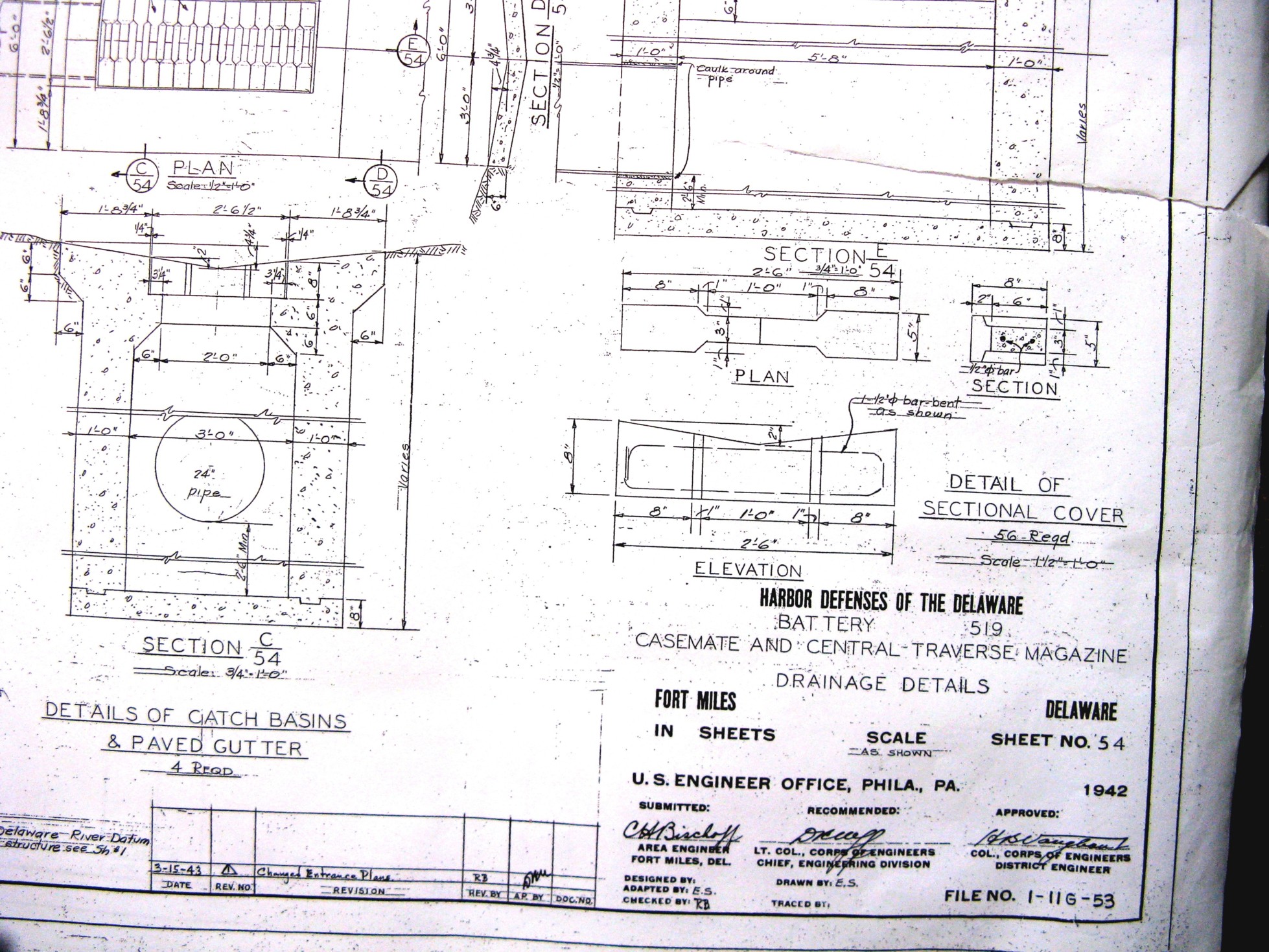

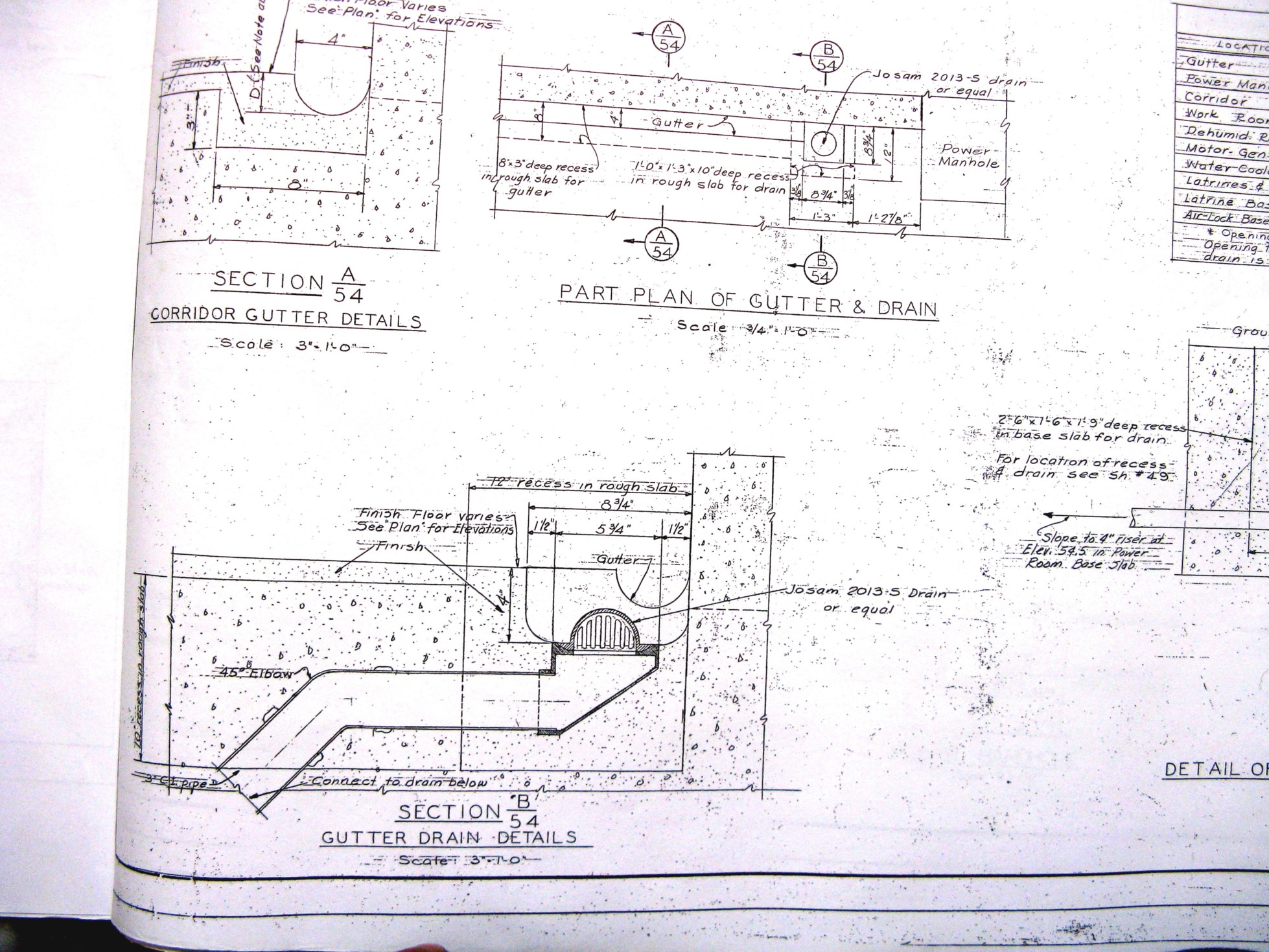

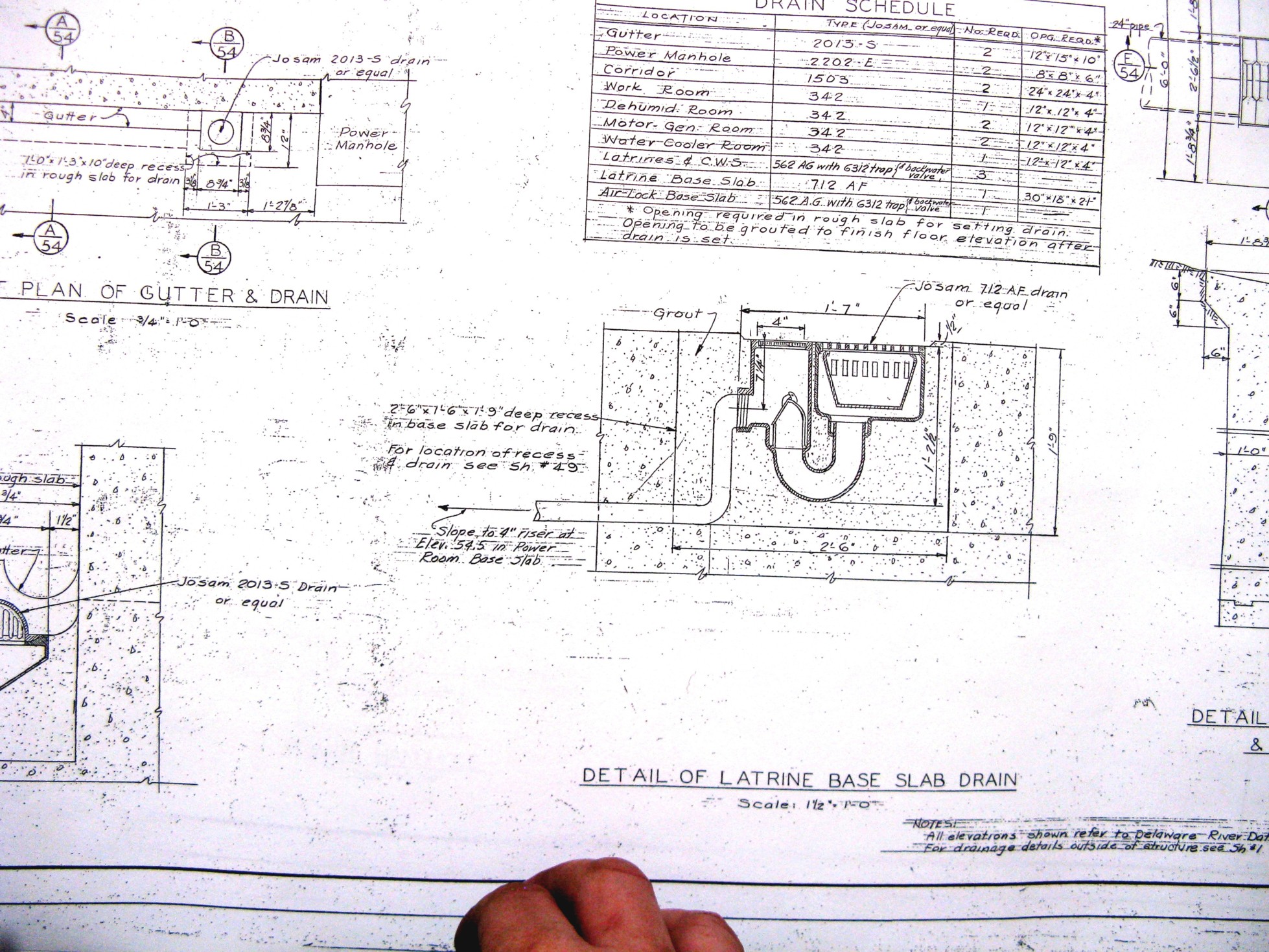

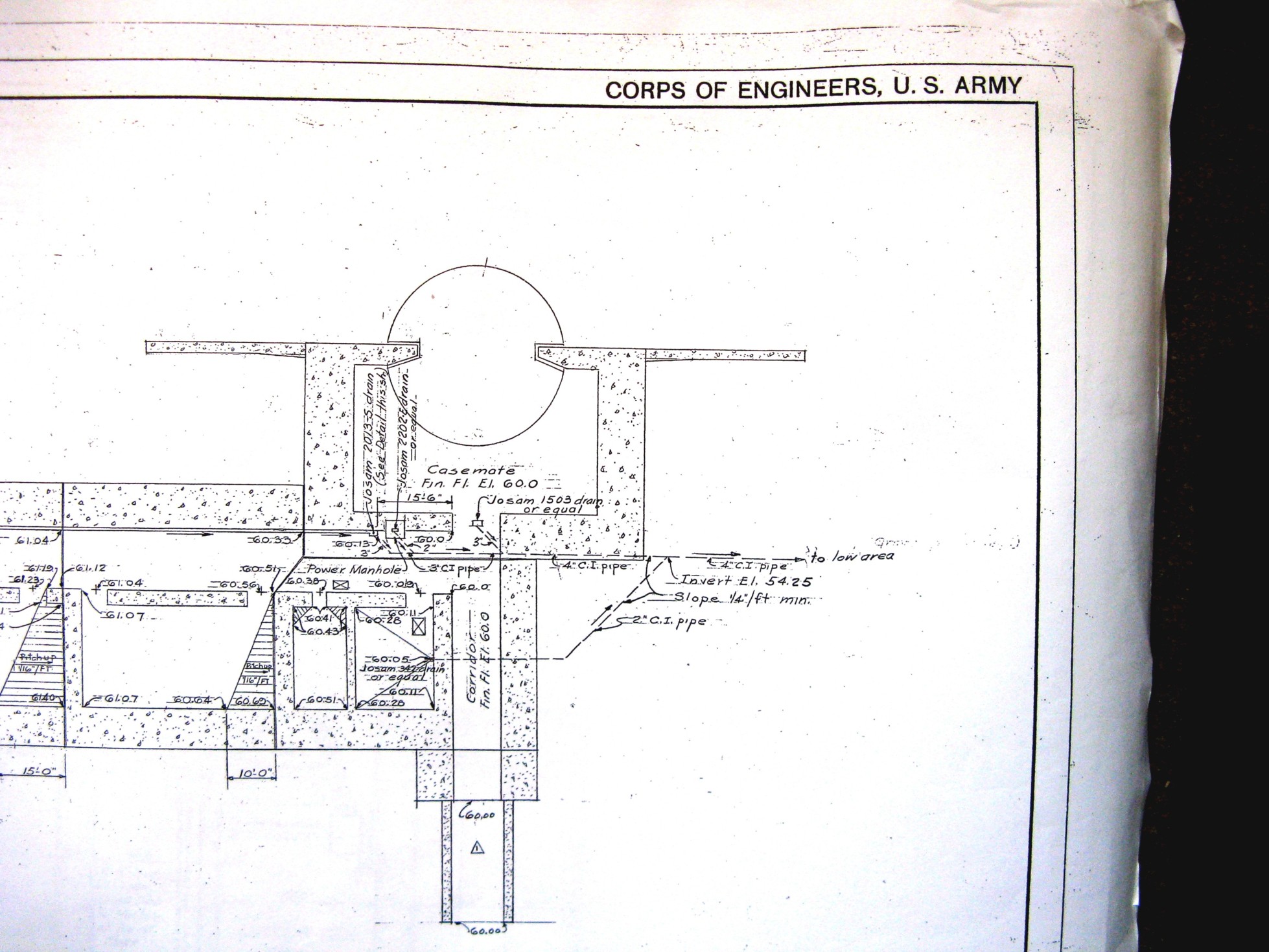

Drains |
||||
 |
 |
 |
 |
|
 |
 |
 |
 |
|
 |
 |
 |
 |
|

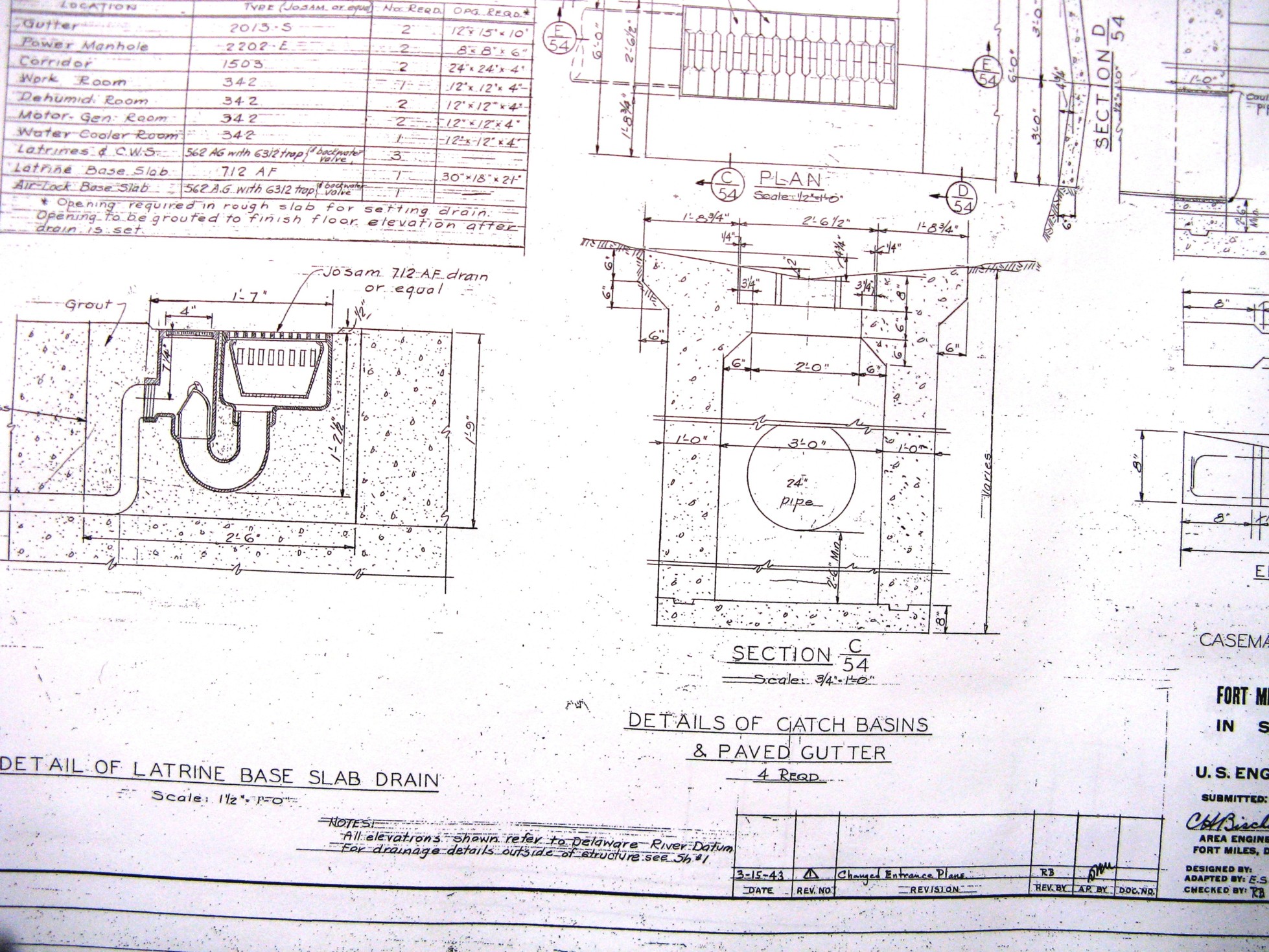

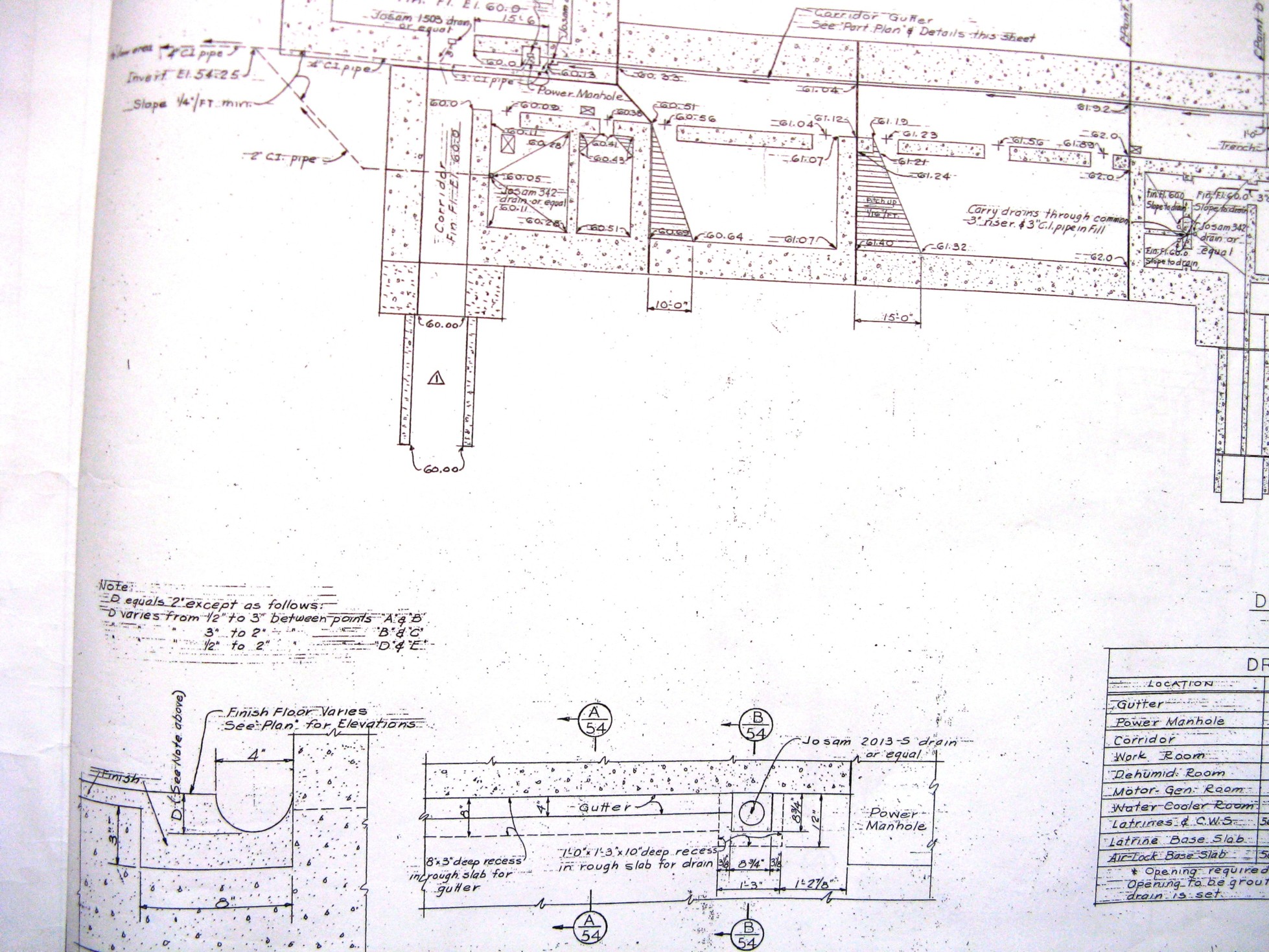

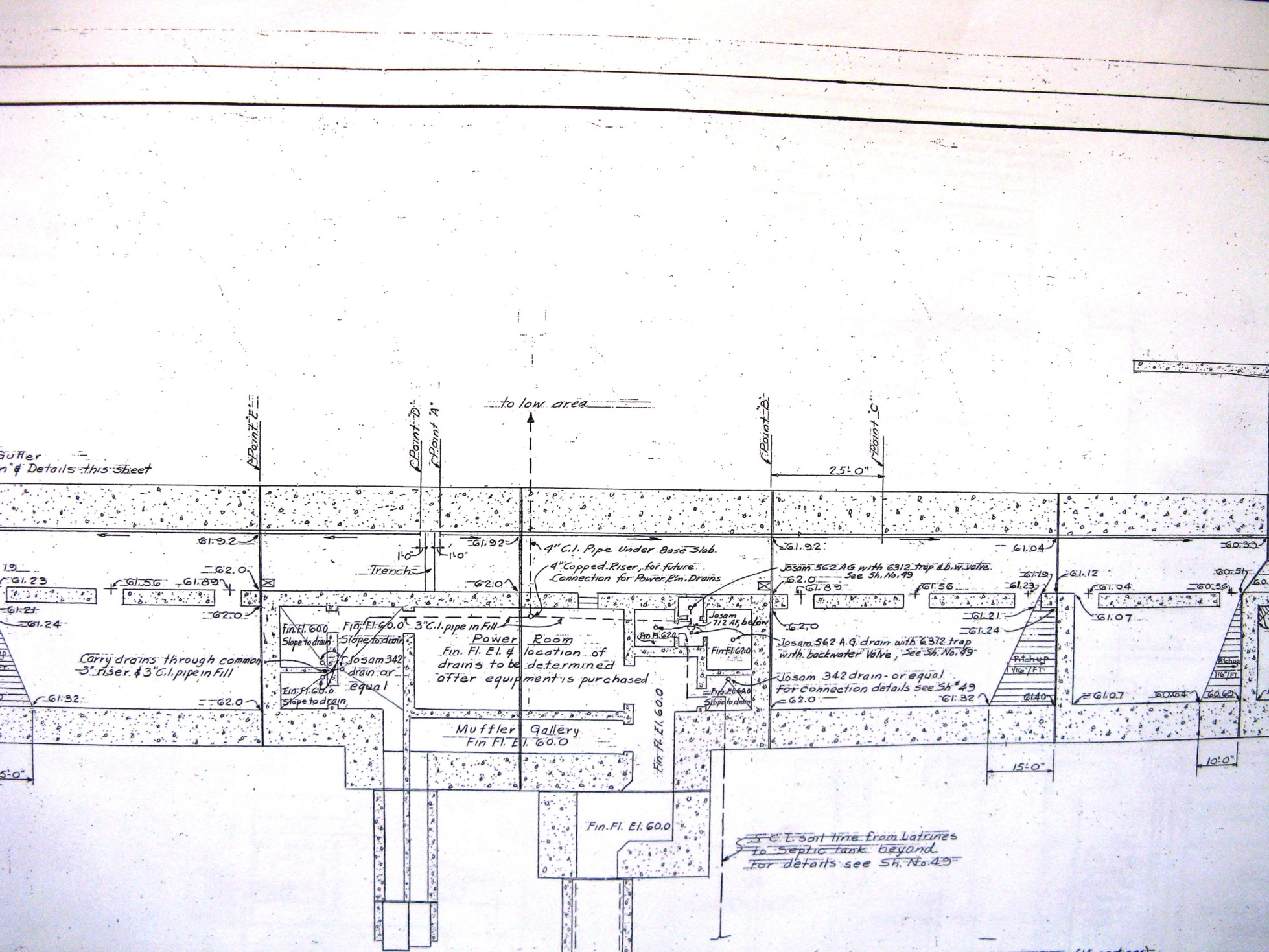

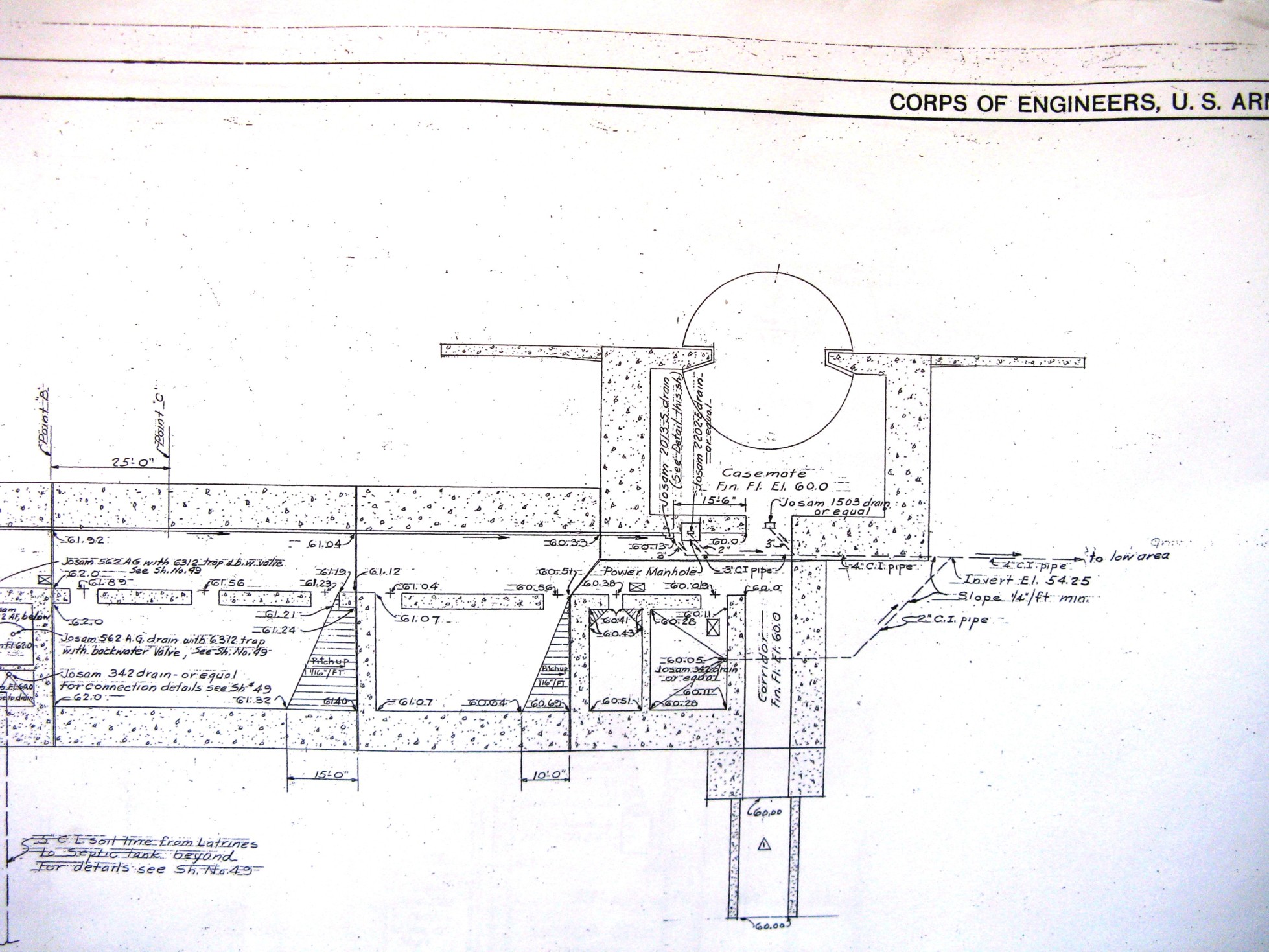

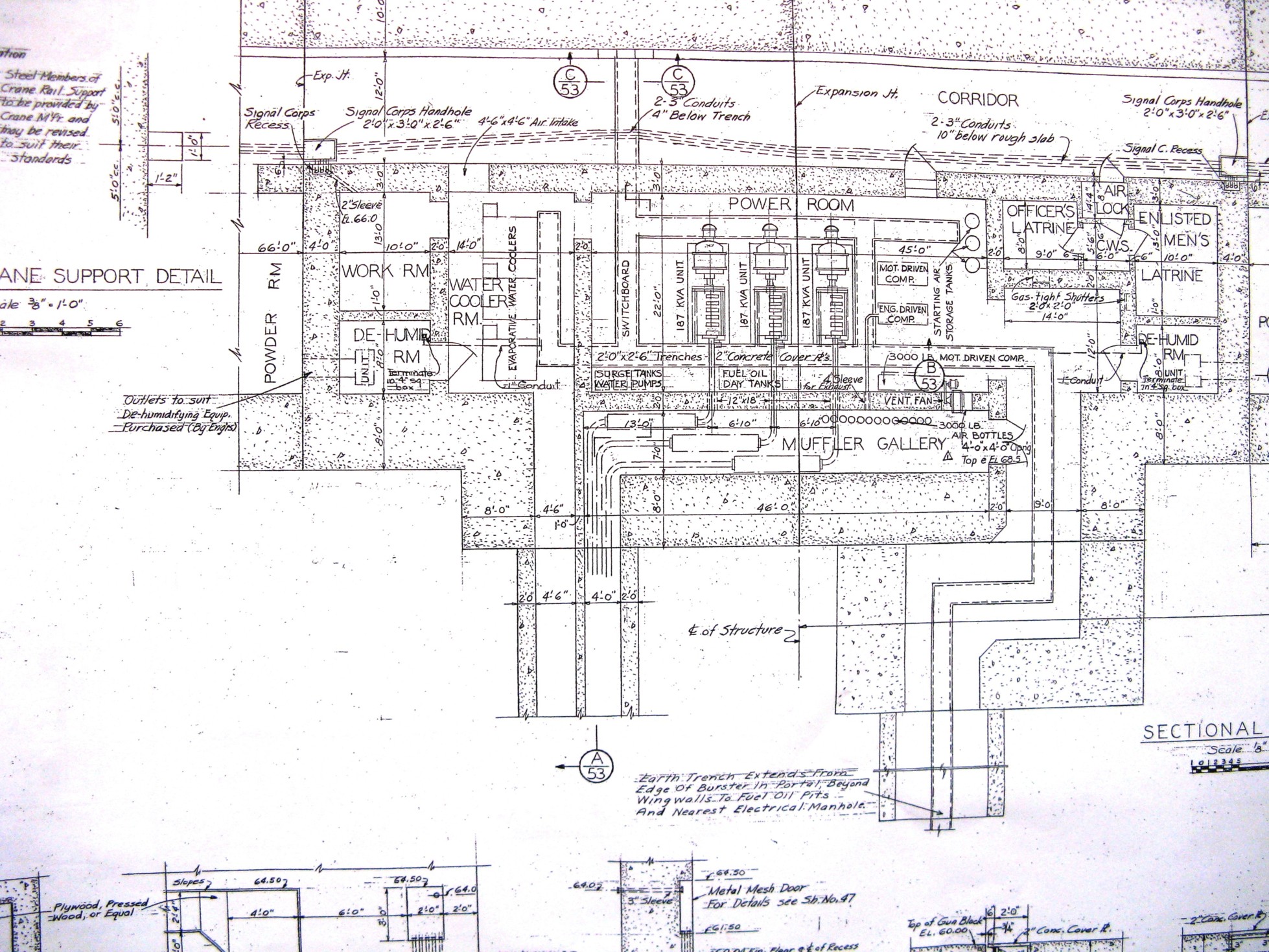

Power Room |
||||
 |
 |
 |
 |
|
 |
 |
 |
 |
|
 |
 |
 |
 |
|
Utilities and Grading |
||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
PDF of grading over 519 Full Sized image |
 |
 |
 |
 |
 |
 |
|
Latrine Gas Proofing |
||||
 |
 |
 |
 |
|
 |
 |
 |
 |
|
 |
 |
 |
 |
|
Latrine Plumbing |
||||
 |
 |
 |
 |
|
 |
 |
 |
 |
|
 |
 |
 |
 |
|
|
3D Model (A work in progress.) SOLIDWORKS E-Viewer (on this site)
eDrawings dramatically eases the sharing of product design information. |
||||
eDrawings Viewer
