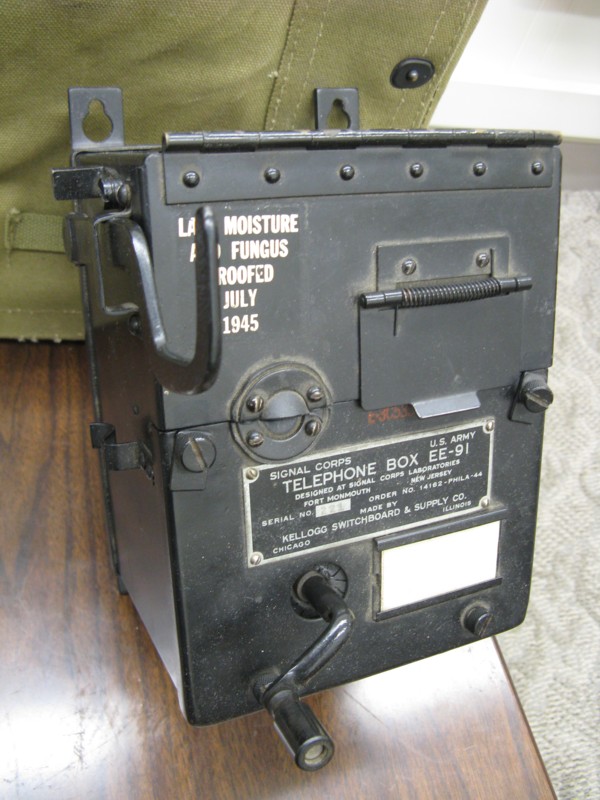

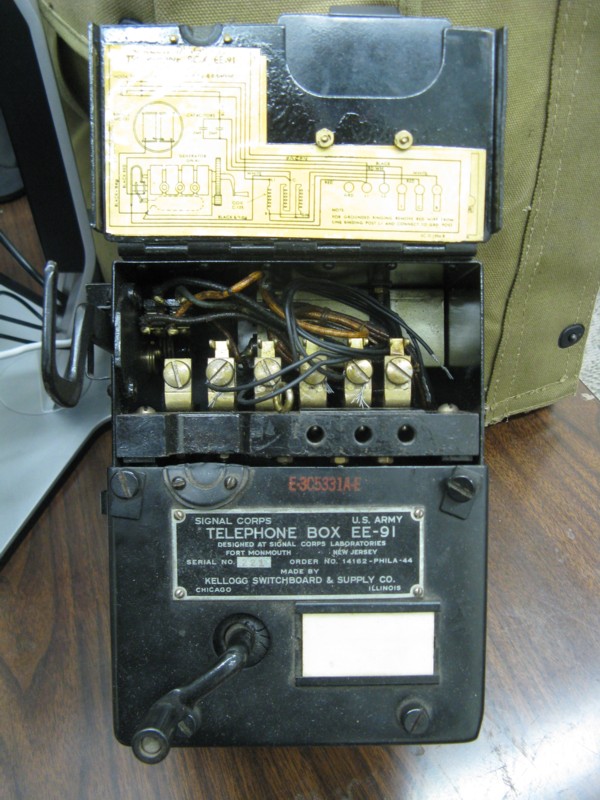

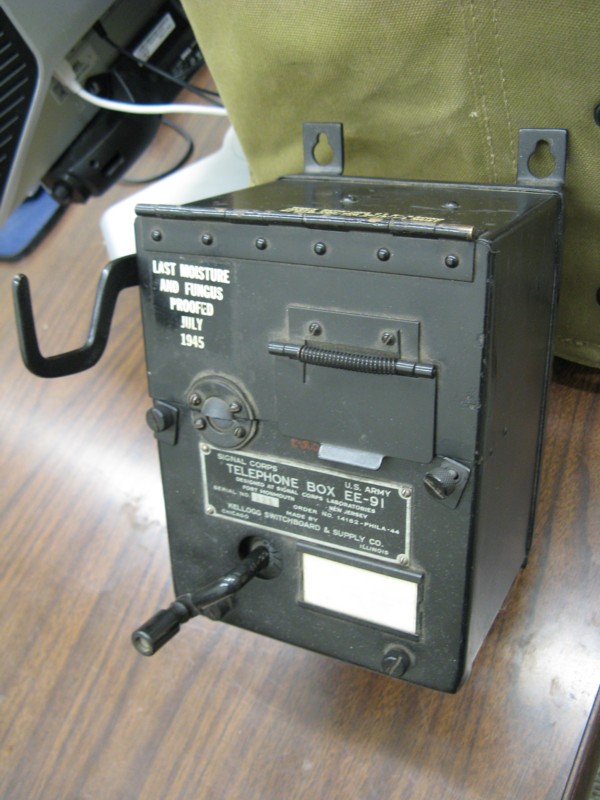

EE-91 |
||
 |
 |
 |
 |

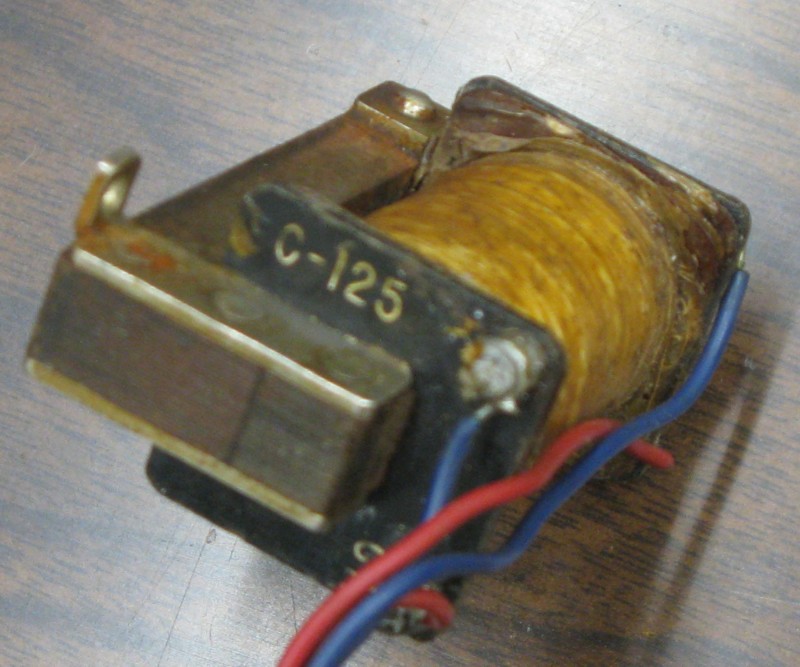

Autotransformer C-125 | |
 |
||

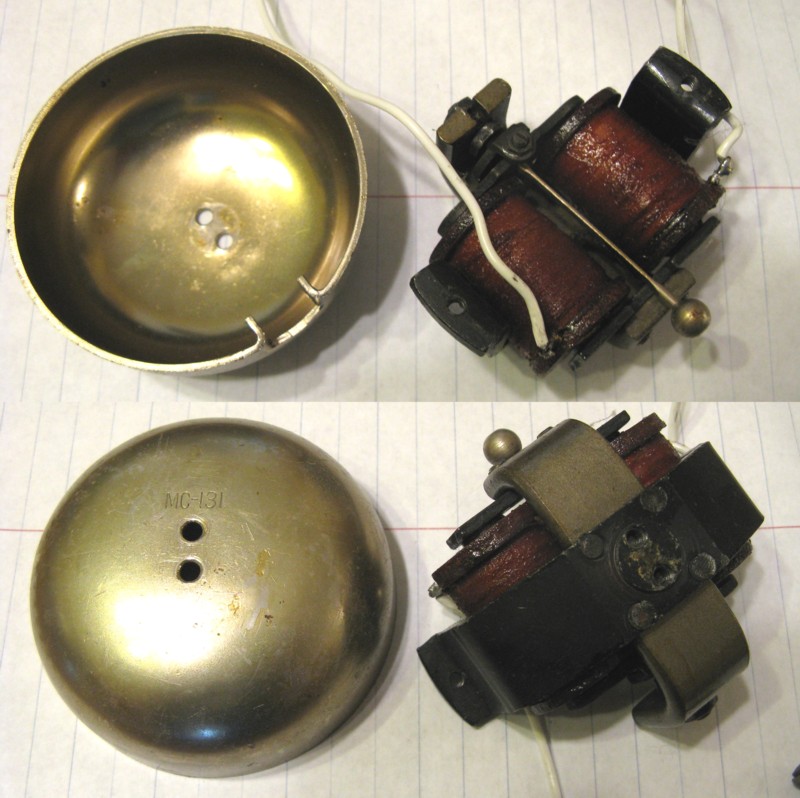

| Ringer MC-131 | ||
 |
||

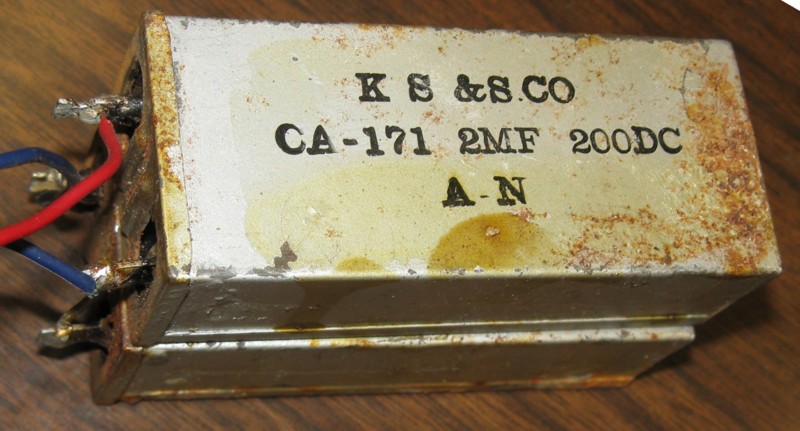

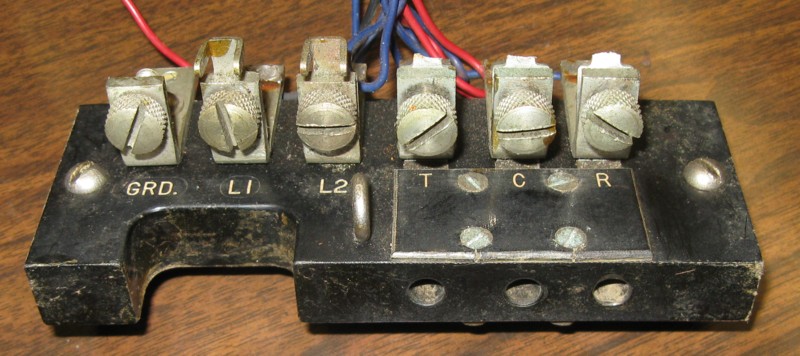

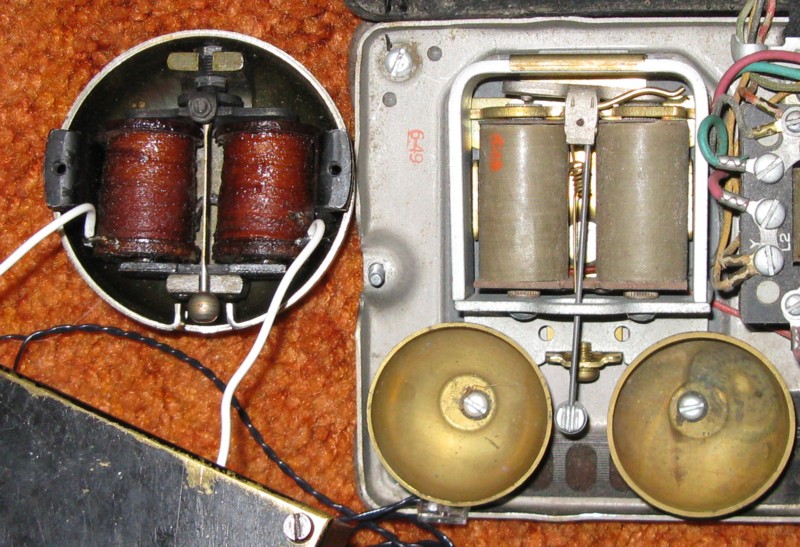

| CA-171 2MF Capacitors | Terminal block with T-C-R jacks for PL-58 | MC-131 vs. B1A |
 |
 |
 |

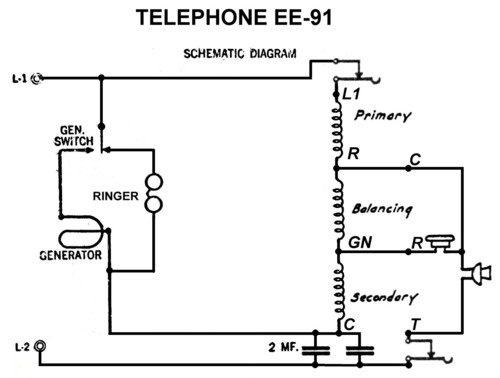

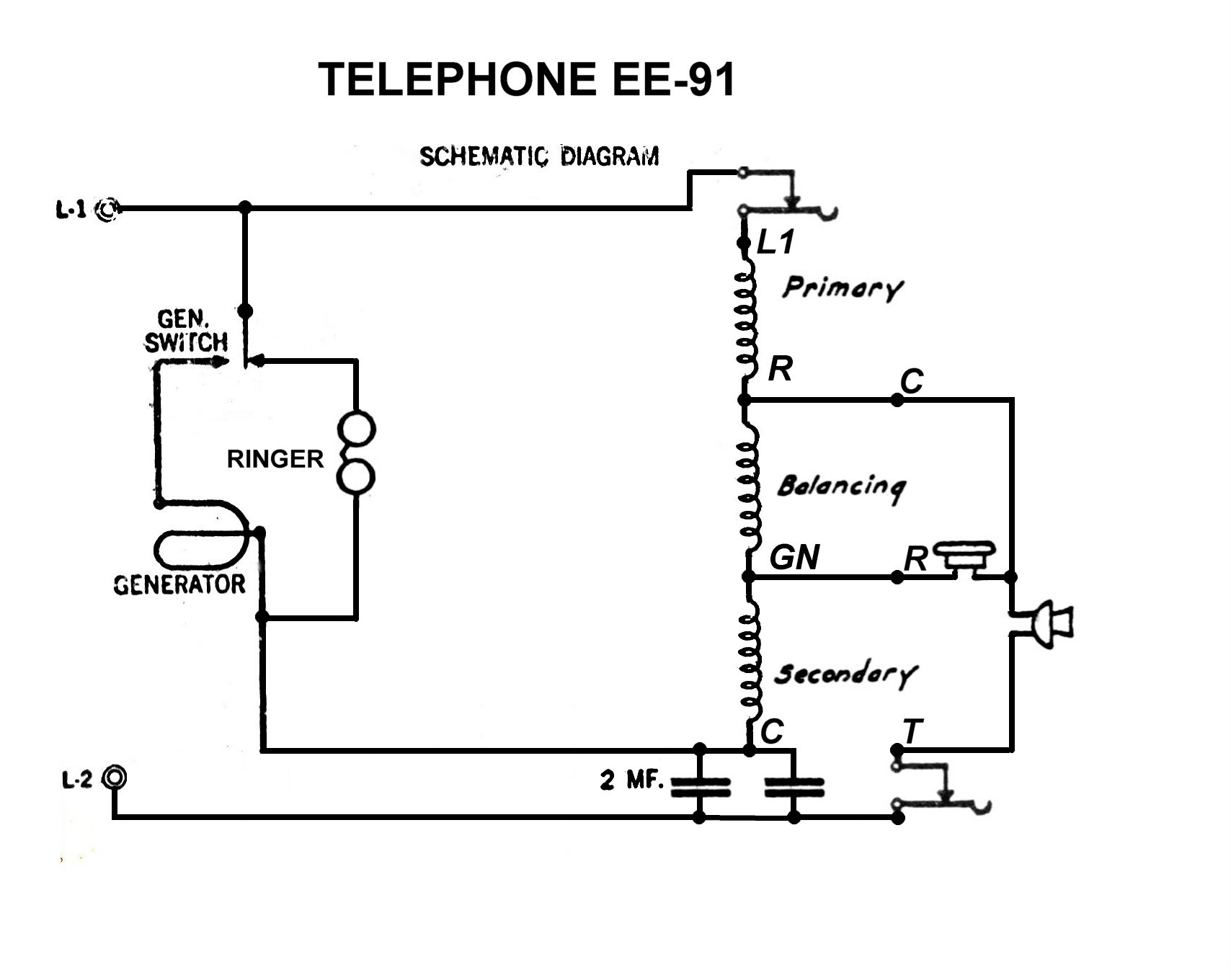

| The EE-91 is very similar to a manual (no dial) WE-302, only in a black box, with the addition of a magneto generator. See "EE-91 vs. WE-302" for circuit differences. The EE-91 uses an MC-131 ringer typical to field phone equipment (EE-8,RM-29a,etc) instead of the B1A two gong ringer in civilian phones. The EE-91 also has the 3 prong jack for PL-58's and screw terminal connection layout for handset similar to EE-8's. |
||
| Part of the Communication Restoration Project at Battery 519 at Fort Miles, is getting 4 EE-91's functional. |
|
|
| Jika Anda dari Indonesia akan Anda menjelaskan minat Anda dalam telepon ini? Silahkan hubungi saya. Aku mungkin bisa menambahkan info lebih lanjut. |
||
| Crusty old Joe's Kodiak Military History Museum site Fire-Control Telephones has more info on EE-91's | ||
